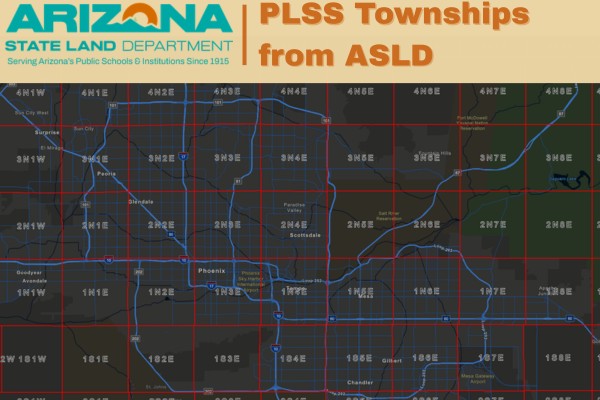

Name: Arizona PLSS Townships GCDB

Display Field: plssid

Type: Feature Layer

Geometry Type: esriGeometryPolygon

Description: This dataset provides Public Land Survey System (PLSS) township and range boundaries across the State of Arizona. It serves as a foundational reference layer for land tenure, surveying, and large-scale regional planning applications.Data Origin & Modifications:Source Data: Bureau of Land Management (BLM) Cadastral National Spatial Data Infrastructure (CADNSDI) via the 2011 Geographic Information Database (GDBC) release.Enhancements: Modified by adding specific attribute fields tailored to meet the operational and reporting needs of the Arizona State Land Department (ASLD).Use Constraints & Aligned Workflows: Optimized for state agency cross-referencing and regional mapping projects requiring PLSS data structured for ASLD compatibility. For official legal boundary determinations, always refer to original BLM survey plats.Access is granted to public agencies, educational institutions, non-profit organizations and private individuals for non-commercial purpose. For commercial use of the data see Arizona Revised Statutes 39-121.03.

Service Item Id: d171a5d7408048c791d6b5210310e4c7

Copyright Text: Arizona State Land Department Bureau of Land Management

Default Visibility: true

MaxRecordCount: 2000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -1.2780993887282755E7
YMin: 3675986.3279861
XMax: -1.2138854212336866E7
YMax: 4439626.52483809
Spatial Reference: 102100  (3857)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [130, 130, 130, 0]
Outline:
Style: esriSLSSolid
Color: [230, 0, 0, 255]
Width: 2
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:
Label Placement: esriServerPolygonPlacementAlwaysHorizontal
Label Expression: N/A
Use Coded Values: true
Symbol:
Color: [168, 0, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 10
Font Family: Tahoma
Font Style: normal
Font Weight: normal
Font Decoration: none

Min. Scale: 1253023.8275553044
Max. Scale: NaN

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• objectid ( type: esriFieldTypeOID, alias: OBJECTID )
• plssid ( type: esriFieldTypeString, alias: PLSS Township Identifer, length: 16 )
• twnshplab ( type: esriFieldTypeString, alias: PLSS Township Label, length: 20 )
• township ( type: esriFieldTypeString, alias: TOWNSHIP, length: 4 )
• range ( type: esriFieldTypeString, alias: RANGE, length: 4 )
• ttext ( type: esriFieldTypeString, alias: TTEXT, length: 6 )
• rtext ( type: esriFieldTypeString, alias: RTEXT, length: 6 )
• tr ( type: esriFieldTypeString, alias: TR, length: 8 )
• label_lg ( type: esriFieldTypeString, alias: LABEL_LG, length: 16 )
• lable_sm ( type: esriFieldTypeString, alias: LABLE_SM, length: 16 )
• townshipnumber ( type: esriFieldTypeDouble, alias: TownshipNumber )
• townshipdirection ( type: esriFieldTypeString, alias: TownshipDirection, length: 1 )
• rangenumber ( type: esriFieldTypeDouble, alias: RangeNumber )
• rangedirection ( type: esriFieldTypeString, alias: RangeDirection, length: 1 )
• globalid ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• shape ( type: esriFieldTypeGeometry, alias: shape )
• st_area(shape) ( type: esriFieldTypeDouble, alias: st_area(shape) )
• st_perimeter(shape) ( type: esriFieldTypeDouble, alias: st_perimeter(shape) )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
